Cudy M6500: BE6500 2.5G Mesh Wi-Fi 7 System

Series: BE6500 | Product: M6500 v1
Price
€339,99
€339,99
Pack
Available In Stock

The Cudy M6500 mesh system is a dual-band Wi-Fi 7 mesh with a total speed of 6.5 Gbps and a 2.5G WAN port. The sweet spot for large homes on a 2 Gbps fibre plan who want the lowest latency for entertainment and gaming.

Key features

  • BE6500 dual-band Wi-Fi 7: total speed 6.5 Gbps
  • 2.5G Ethernet port: uses multi-Gig fibre
  • MLO + 4K-QAM + 320 MHz
  • Seamless mesh roaming
  • Low latency for cloud gaming and video calls
  • Cudy App setup
  • WPA3 security

Available in

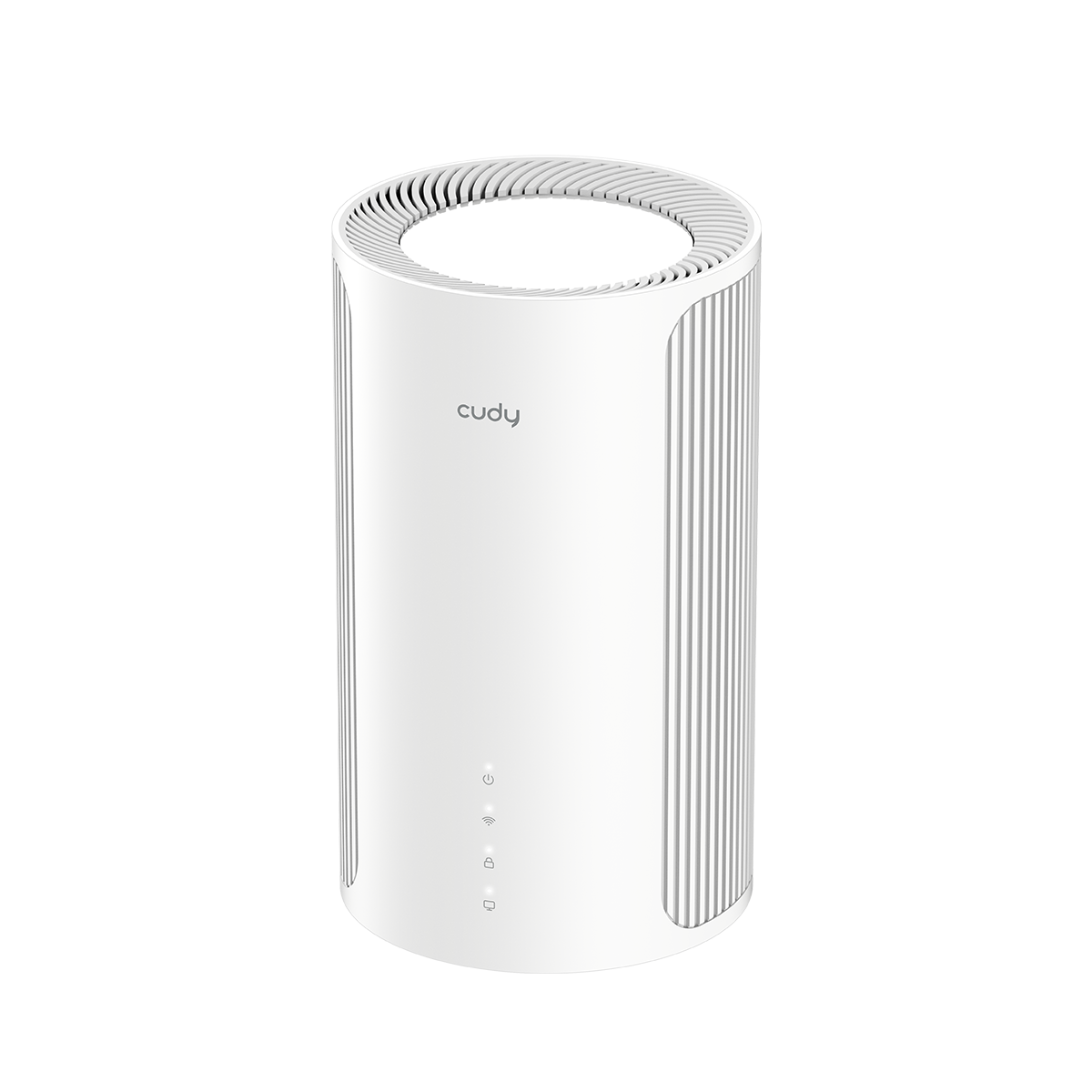

  • 1-pack: up to ~200 m²

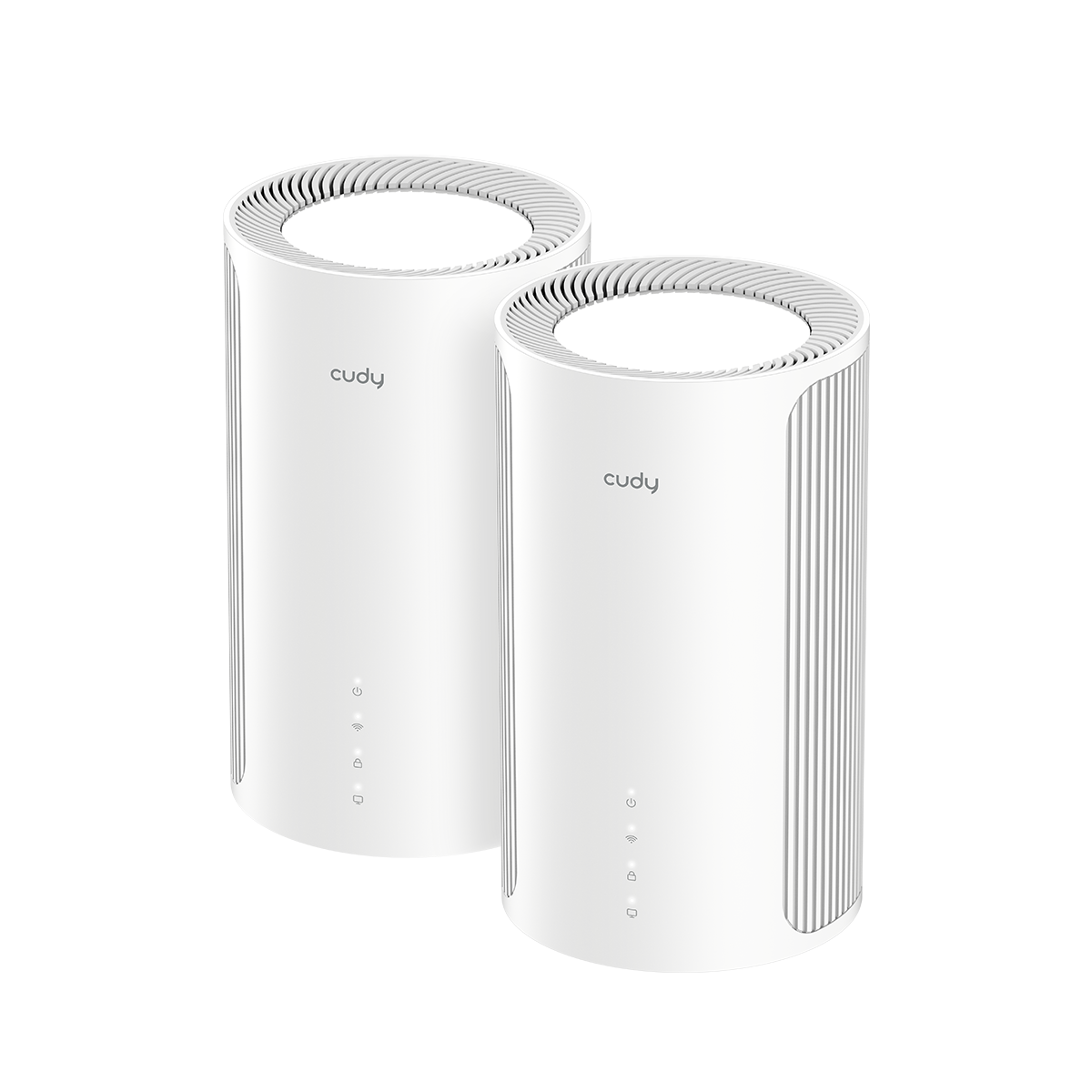

  • 2-pack: up to ~400 m²

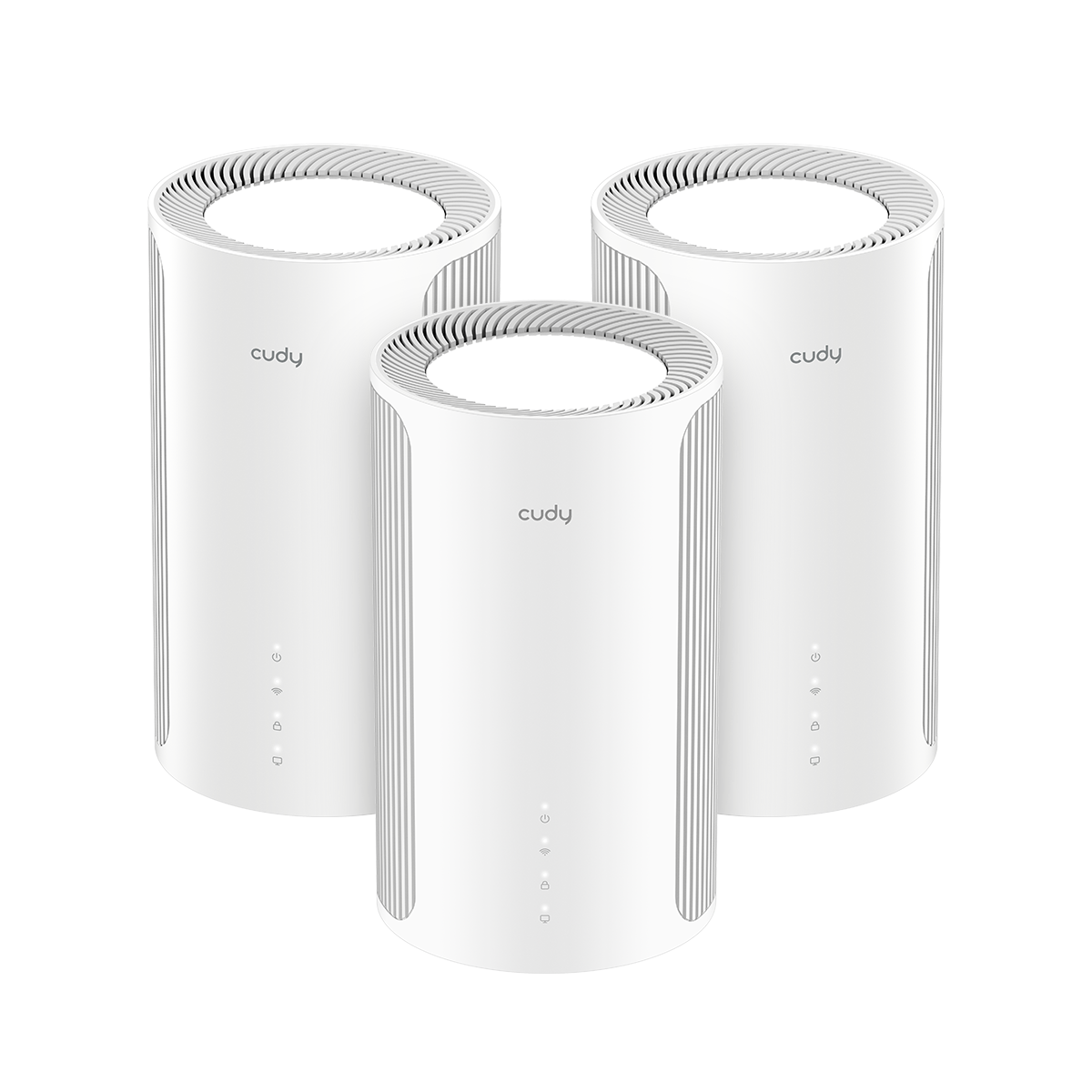

  • 3-pack: up to ~600 m²

Specifications

Wi-Fi Wi-Fi 7 (802.11be) dual-band BE6500
Total speed 6.5 Gbps
Ethernet 2.5 Gbps + Gigabit
Technologies MLO, 4K-QAM, 320 MHz, OFDMA, MU-MIMO

FAQ

What's the difference vs the M3600?
The M3600 is BE3600 with Gigabit ports. The M6500 nearly doubles the Wi-Fi speed and adds a 2.5G port.

What's the difference vs the M11000?
The M11000 is tri-band (incl. 6 GHz band). The M6500 is dual-band and therefore more affordable.

Veilig verbonden
Inclusief BTW
Cudy M6500: BE6500 2.5G Mesh Wi-Fi 7 System
  • Overview
  • Specifications

Specificaties

CPU Details
2,0 GHz Quad-Core, ARM Cortex-A7
Flash/ROM
128 MB (1 Gbit) NAND
DDR/RAM
512 MB (4 Gbit) DDR4
MLO Speeds
6453 Mbps
5 GHz Wi-Fi Speed
5765 Mbps
2,4 GHz Wi-Fi Speed
688 Mbps
5 GHz Wi-Fi Streams
4 Spatial Streams
2,4 GHz Wi-Fi Streams
2 Spatial Streams
Wi-Fi Antennas
6× Fixed
FEM or PA/LNA
5 GHz: 4× External & 2,4 GHz: 2× Internal
Beamforming
Ja
Range Performance
Max: 320 m
Indoor Coverage Reference
2-pack: 260 m² & 3-pack: 360 m²
2.5G RJ45 Ports
1
Gigabit RJ45 Ports
3
Ethernet Notes
1× WAN-poort, de overige zijn LAN-poorten
LED
System, Internet, Wi-Fi & WPS
Physical Buttons
WPS Button & Reset Button
Power Input Type
DC Jack
Power Methods
DC
Power Input
12V⎓2A
Wi-Fi Standards
Wi-Fi 7
Max Wi-Fi Modulation
4K-QAM
Wi-Fi Efficiency
MLO, MRU, Puncturing, OFDMA, MU-MIMO & BSS Color
Max Capacity
512
Recommended Client Upper Limit
200
Wi-Fi Channel Width
Auto/20/40/80/160 MHz
Wi-Fi Security
WPA/WPA2/WPA3
Guest Network
2,4 GHz & 5 GHz
WPS
Ja
Operation Modes
Wi-Fi Router, Access Point, Range Extender & WISP Client
Mesh
Cudy Mesh
Mesh Backhaul
Wireless Backhaul & Wired Backhaul
Multi-Band Backhaul
Ja
WAN Mode
DHCP, Static IP, PPPOE, PPTP & L2TP
QoS
Per-User Rate Limiting & Guest Network Rate Limiting
DHCP
Address Reservation, DHCP Client List & Server
IP Versions
IPv4/IPv6
IPv6 Protocols
Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E & DS-Lite
Multicast
Ja
IPTV/VLAN
Bridge, Tag VLAN, VoIP VLAN & IPTV VLAN
TTL Customization
Extend, Spoof & Custom
IGMP
IGMP Proxy & IGMP Snooping
Forwarding
Port Forwarding, Port Triggering, UPnP & DMZ
Firewall
SPI Firewall, DoS Protection & Block PING
Application Layer Gateway
IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough & RTSP Passthrough
VPN Server
WireGuard, OpenVPN, IPsec, Zerotier, PPTP & L2TP
VPN Client
WireGuard, OpenVPN, IPsec, Zerotier, PPTP & L2TP
DNS Options
DNS over TLS, Manual DNS, Rebind Protection & Override Clients' DNS
DNS over TLS Providers
Cloudflare, Google, Quad9 & Custom
Wake on LAN
Ja
Online Detection
Ja
Parental Controls
Profiles Settings, Offline Time, Online Time, Pause the Internet & Web Filter
All Devices Management
Wi-Fi Time Schedule, MAC Filter & IP/MAC Binding
Per-Devices Management
Internet On/Off, VPN On/Off, Online Time Schedule & Device Rename
Content Management
Domain Filter & IP Filter
LED Control
Ja
Local Control Method
Config Web Page & App Control
Remote Control Method
Config Page via HTTPS, App Control & TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
Local Update, App (Over the Air) & Online Update
Reliability
Timed Reboot & Backup and Restore
Diagnostic Tools
Diagnosis, Ping, Traceroute, NSLookup & System Log
Languages
English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese & Traditional Chinese
Waarom Cudy?

Jouw netwerk geoptimaliseerd

  • Extreem snel

    WiFi 7

    Met het gloednieuwe WiFi 7 haal je verbindingen tot wel 2,5G. Zo loop je nooit meer tegen "lag" aan.

  • Altijd bereik

    De super snelle Cudy Mesh systemen zorgen voor bereik door heel je huis. Zelfs op de plekjes waar je normaal niet zulk goed bereik hebt.

  • Makkelijk te beheren

    Met de moderne Cudy app voor iPhone en Android beheer jij jouw volledige netwerk met een druk op de knop. Van het snel toevoegen van een Mesh punt tot de controle over wie er op jouw netwerk mag. Alles vanuit een app.
