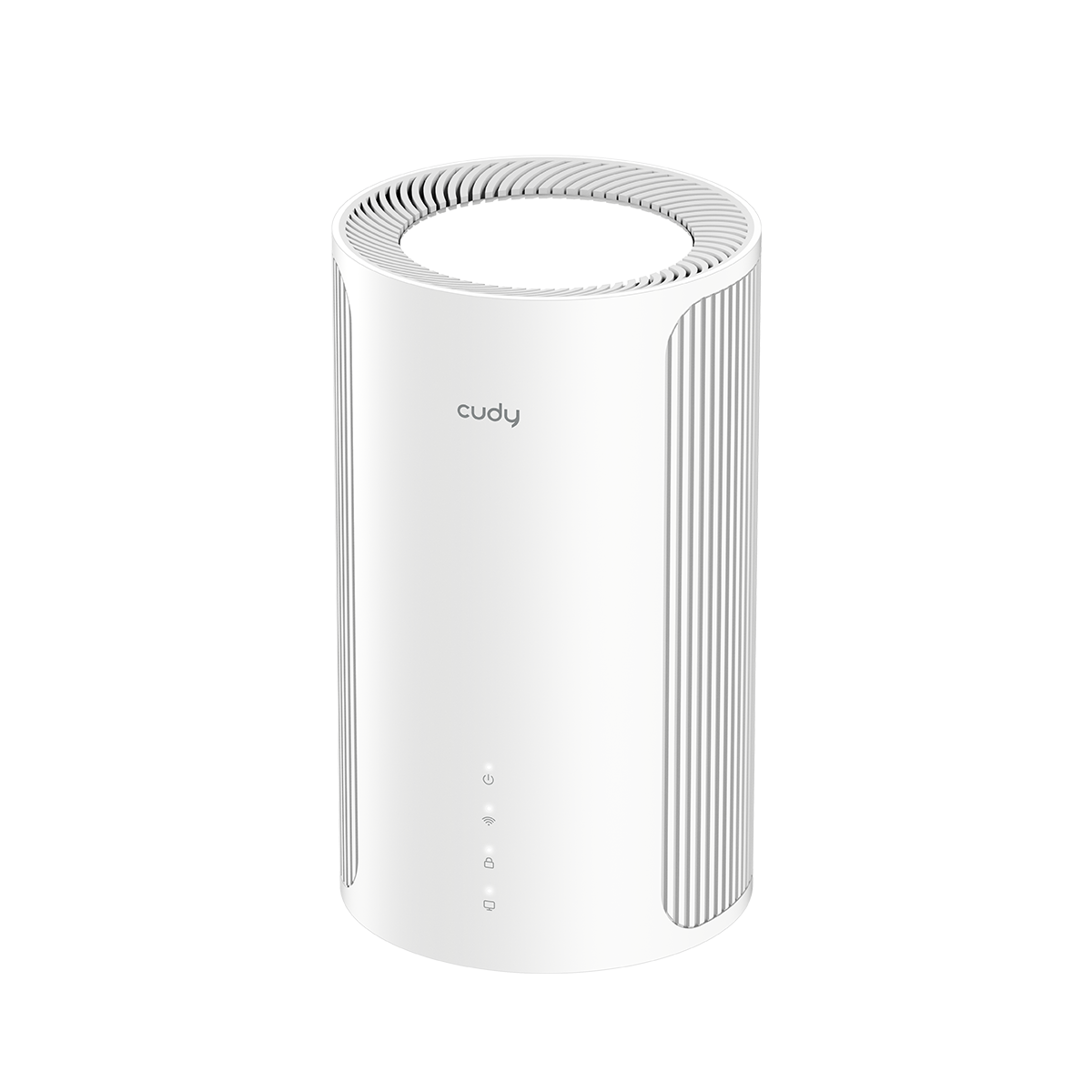

Cudy M11000: BE11000 Tri-Band Wi-Fi 7 Mesh System

The Cudy M11000 tri-band Wi-Fi 7 mesh system brings BE11000 speed and the 6 GHz spectrum to large homes. With MLO and 4K-QAM it delivers the lowest latency and highest throughput for cloud gaming, 8K streaming and gigabit-level remote work.

Key features

  • BE11000 tri-band Wi-Fi 7: 2.4 + 5 + 6 GHz
  • 10.6 Gbps combined Wi-Fi speed
  • MLO + 320 MHz + 4K-QAM for low latency and max throughput
  • 2.5G Ethernet ports on every node
  • Seamless mesh roaming between units
  • Cudy Mesh app for setup
  • WPA3 security

Available in

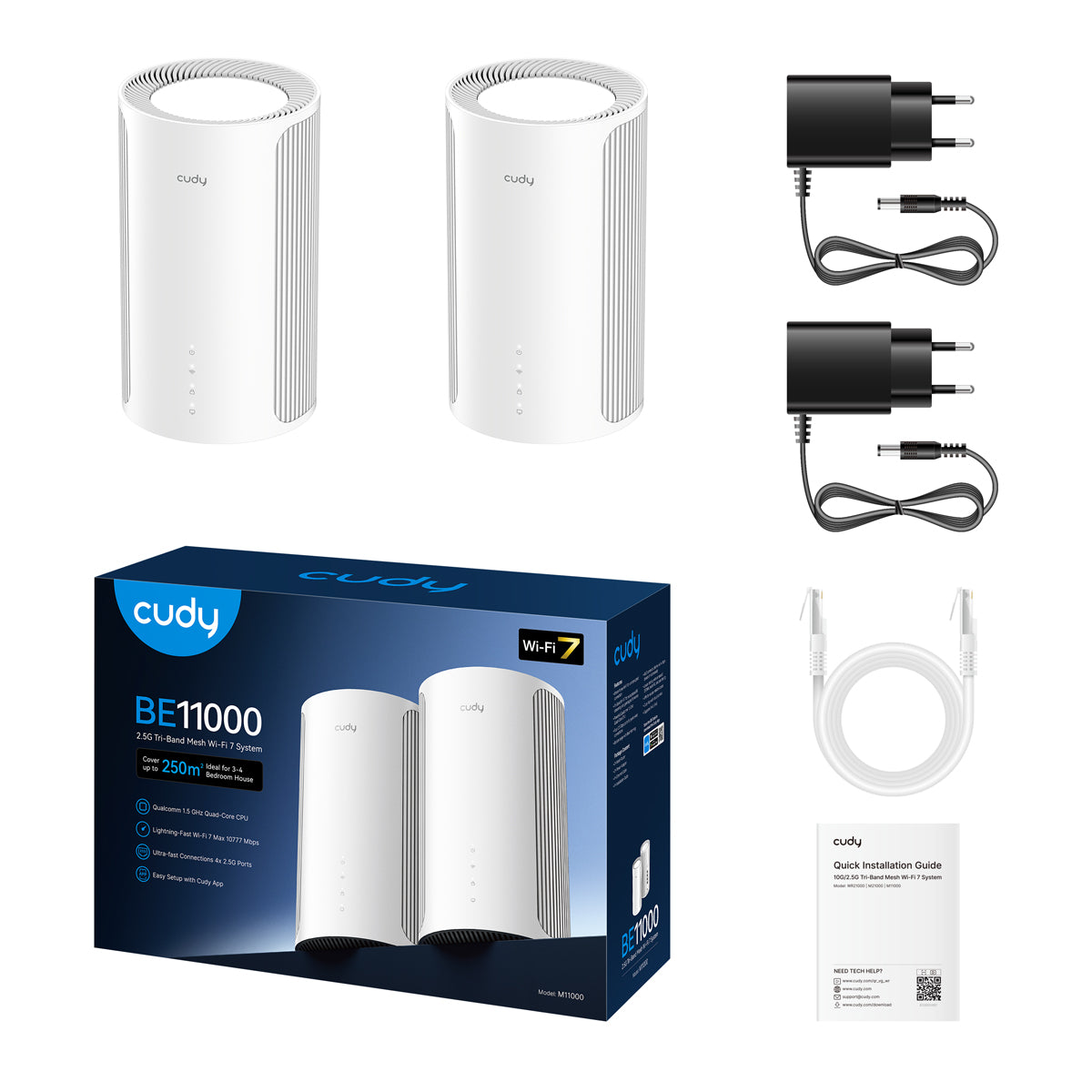

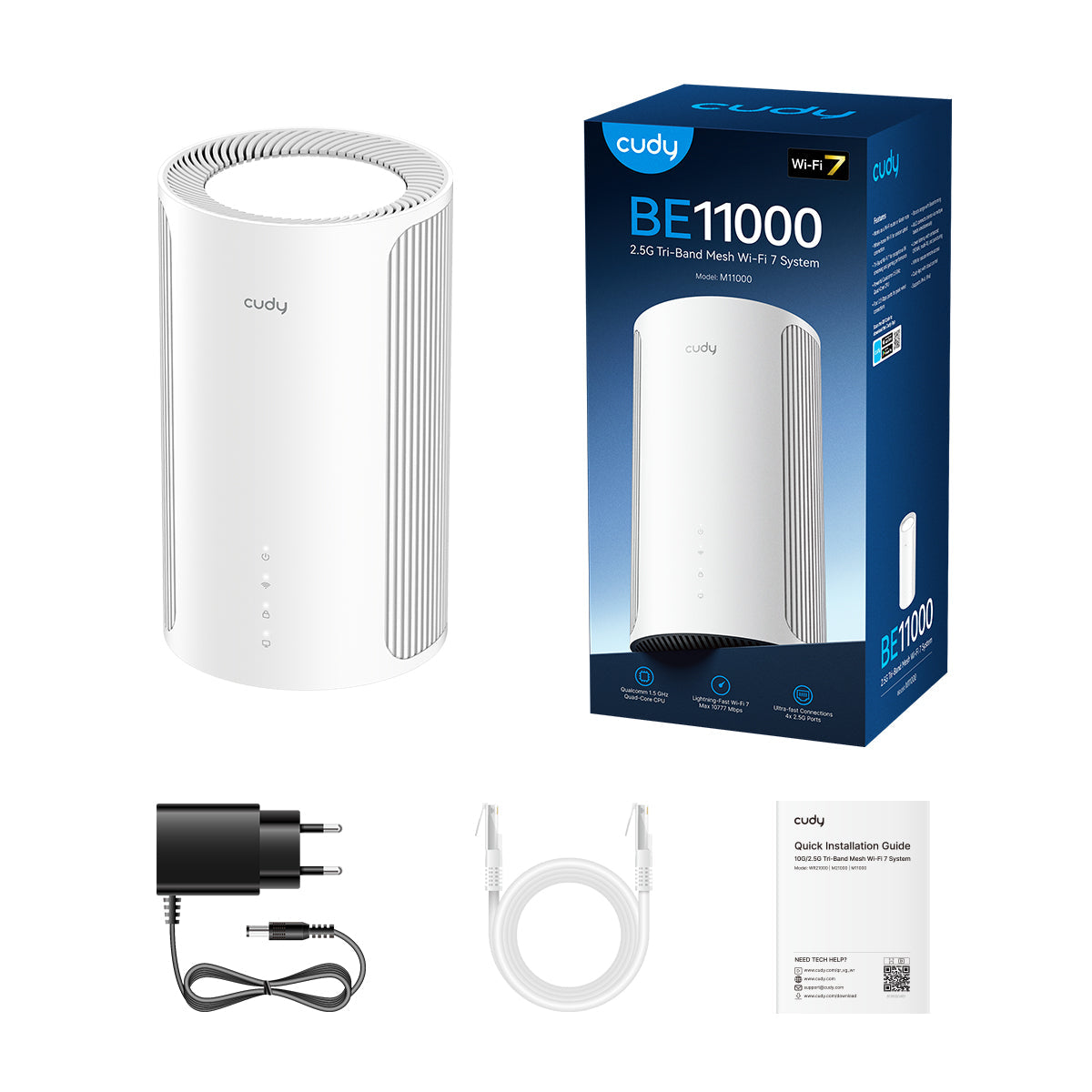

  • 1-pack: extension of an existing network

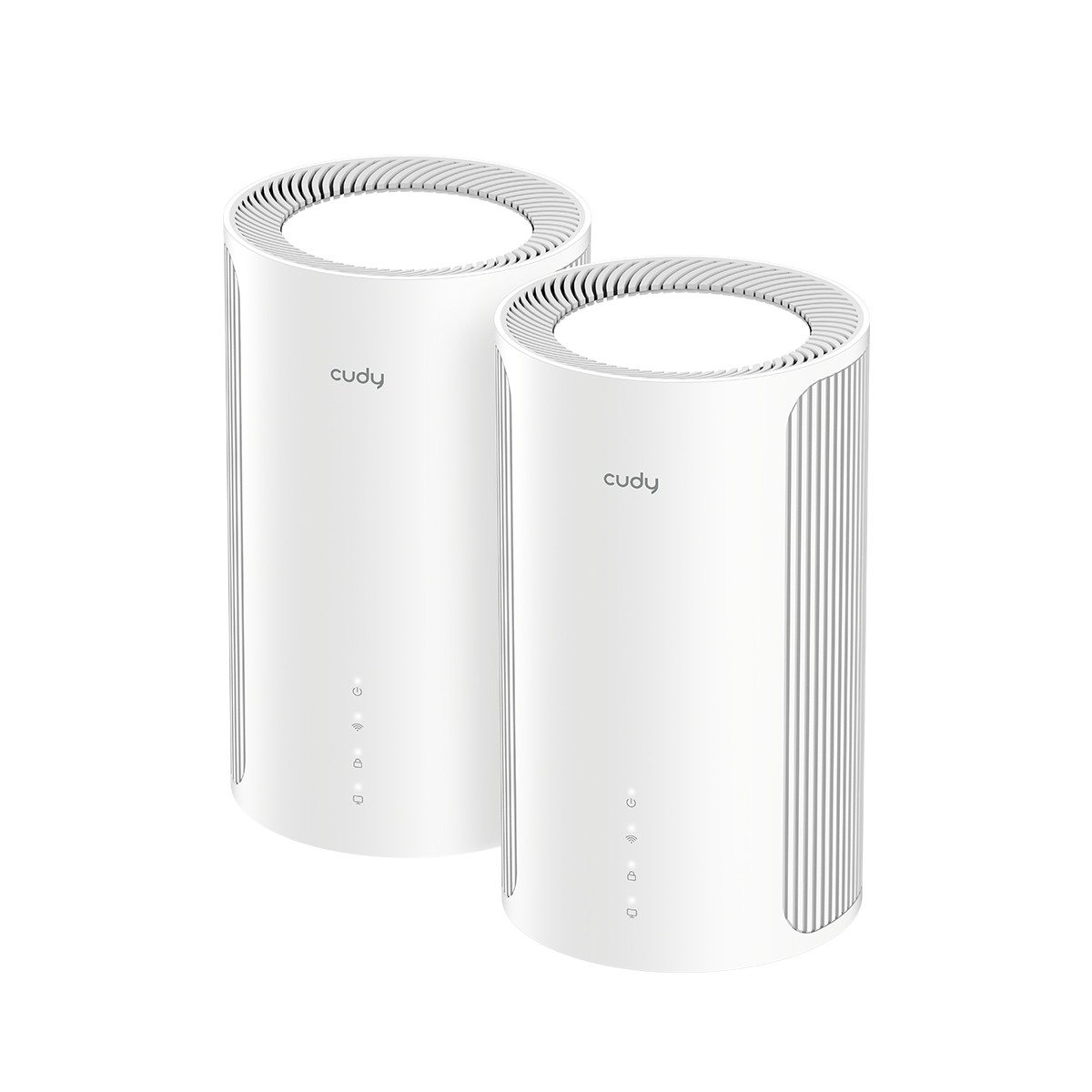

  • 2-pack: single-family home up to ~400 m²

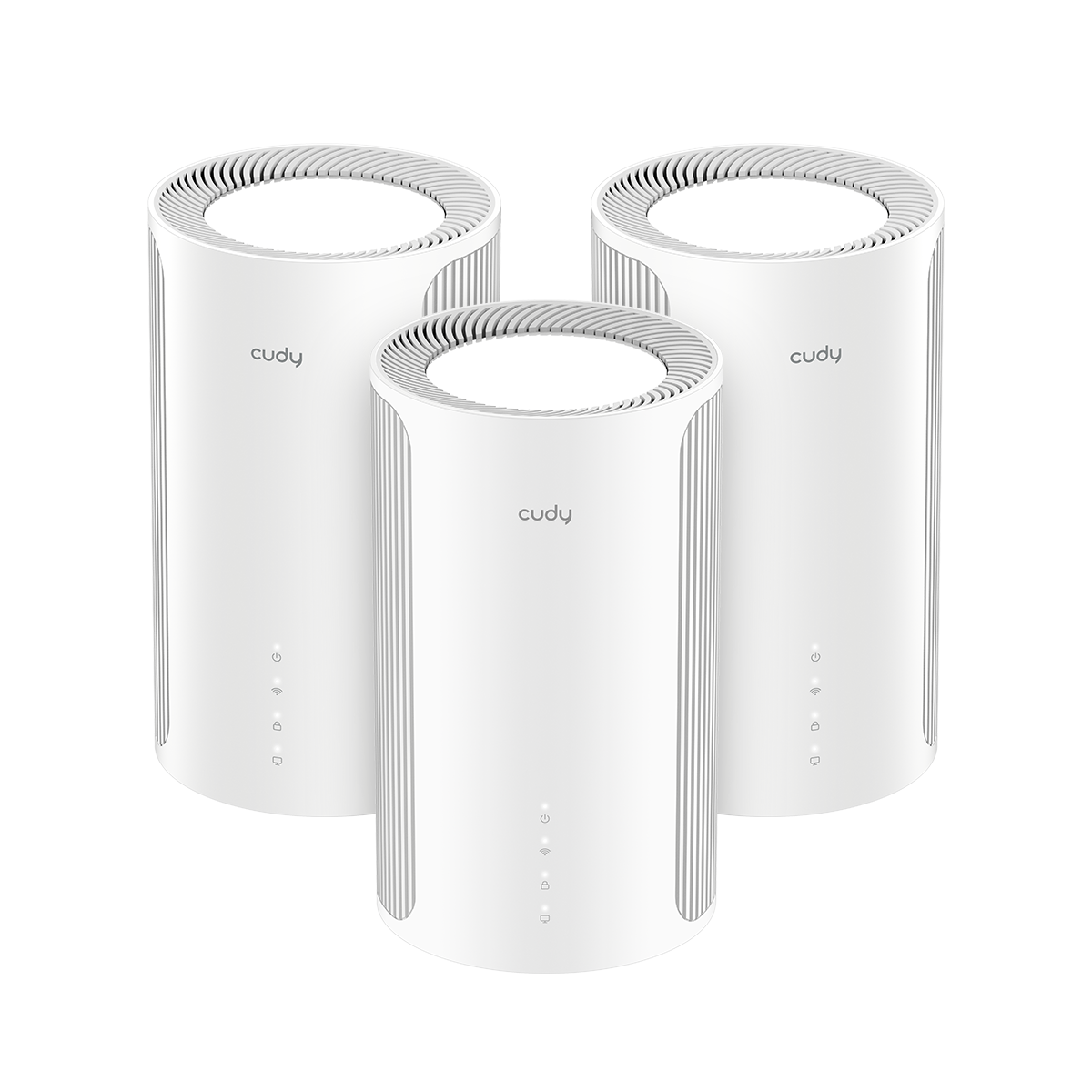

  • 3-pack: villa or multiple floors up to ~600 m²

Specifications

Wi-Fi Wi-Fi 7 (802.11be) tri-band BE11000
Speeds 6 GHz 5760 + 5 GHz 4320 + 2.4 GHz 688 Mbps
Ethernet 2.5 Gbps RJ45
Technologies MLO, 320 MHz, 4K-QAM, OFDMA, MU-MIMO

FAQ

Do I need a 6 GHz device?
No, the mesh stays compatible with all your Wi-Fi 6/5/4 devices. The 6 GHz band is a bonus for Wi-Fi 7 clients.

How many units do I need?
Plan one unit per floor or ~200 m² as a guideline.

COMING SOON
Secure networking
VAT included
Cudy M11000: BE11000 Tri-Band Wi-Fi 7 Mesh System
  • Overview
  • Specifications

Specificaties

6 GHz Wi-Fi Speed
5765 Mbps
5 GHz Wi-Fi Speed
4324 Mbps
2,4 GHz Wi-Fi Speed
688 Mbps
6 GHz Wi-Fi Streams
2T2R (2×2 MIMO)
5 GHz Wi-Fi Streams
2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2×2 MIMO)
Wi-Fi Antennas
6× Internal
Range Performance
Ja
Indoor Coverage Reference - 2 Pack
250 m² (2100 sq ft)
Indoor Coverage Reference - 3 Pack
350 m² (2900 sq ft)
Gigabit RJ45 Ports
0

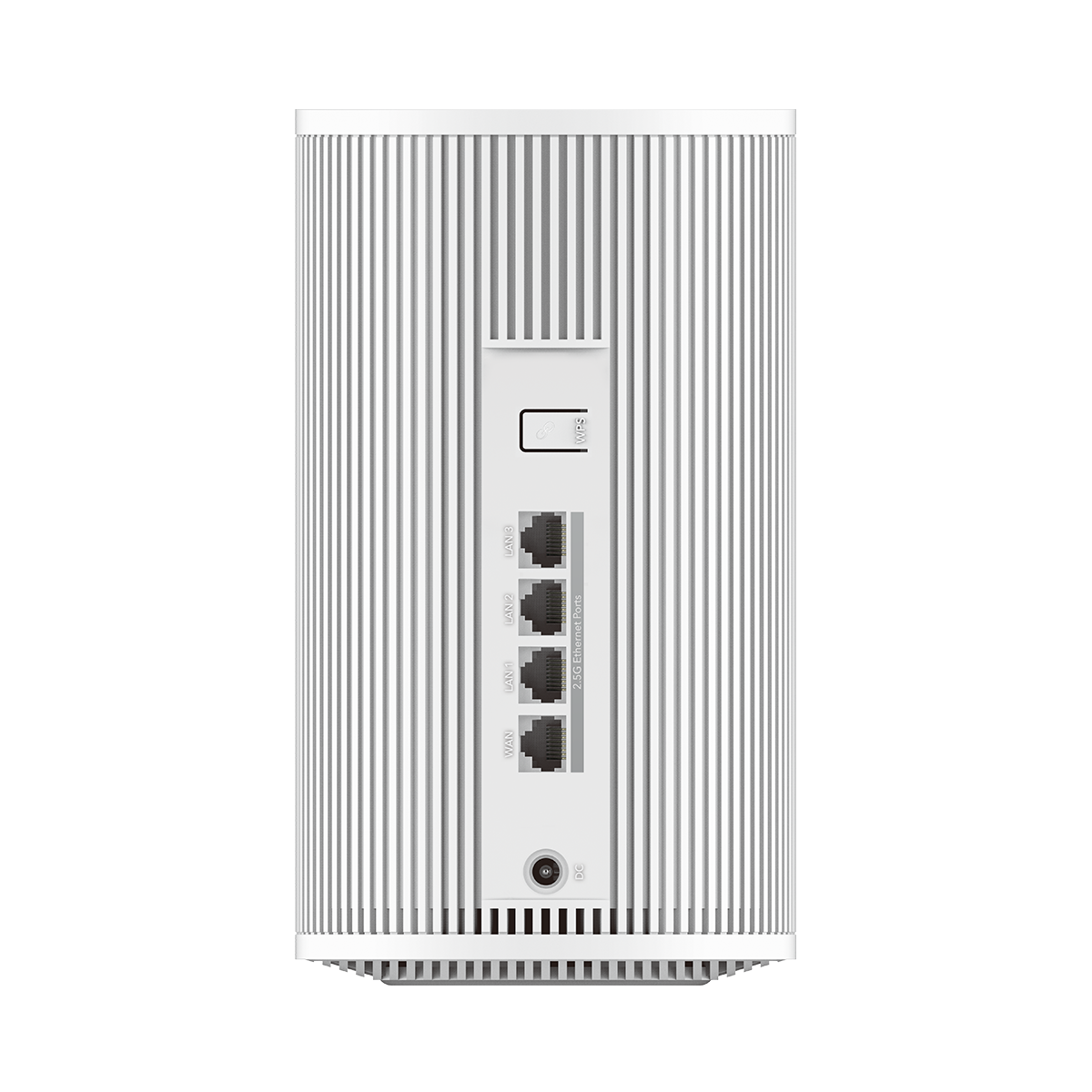

2,5G RJ45 Ports
4
Power input
DC Jack
Wi-Fi Standards
Wi-Fi 7
Max. Wi-Fi Modulation
4K-QAM
Max. Wireless Capacity
384
Wi-Fi Security
WPA/WPA2/WPA3
Guest Network
2,4 GHz, 5 GHz & 6 GHz
WPS
Ja
Operation Modes
Wi-Fi Router, Access Point, Range Extender, WISP & Client
Mesh
Cudy Mesh
Mesh Backhaul
Wireless Backhaul & Wired Backhaul
Multi-Band Backhaul
Ja
WAN Mode
DHCP, Static IP, PPPOE, PPTP & L2TP
QoS
Per-User Rate Limiting
DHCP
Address Reservation, DHCP Client List & Server
IP Versions
IPv4/IPv6
IPv6 Protocols
Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E & DS-Lite
IPTV/VLAN
Bridge, Tag VLAN, VoIP VLAN & IPTV VLAN
TTL Customization
Extend, Spoof & Custom
IGMP
IGMP Proxy & IGMP Snooping
Forwarding
Port Forwarding, Port Triggering, UPnP & DMZ
Firewall
SPI Firewall DoS Protection Block PING
Application Layer Gateway
IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough & RTSP Passthrough
VPN Server
WireGuard, OpenVPN, IPsec, Zerotier PPTP & L2TP
VPN Client
WireGuard, OpenVPN, IPsec, Zerotier PPTP & L2TP
VPN Performance
OpenVPN Client (UL/DL): 66 / 66 Mbps, OpenVPN Server (UL/DL): 65 / 64 Mbps, WireGuard Client (UL/DL): 150 / 223 Mbps & WireGuard Server (UL/DL): 251 / 177 Mbps
DNS Options
DNS over TLS, Manual DNS, Rebind Protection & Override Clients' DNS
DNS over TLS Providers
Cloudflare, Google, Quad9 & Custom
Wake on LAN
Ja
Online Detection
Ja
Parental Controls
Profiles Settings, Offline Time, Online Time, Pause the Internet & Web Filter
All Devices Management
Wi-Fi Time Schedule, MAC Filter & IP/MAC Binding
Per-Devices Management
Internet On/Off, VPN On/Off, Online Time Schedule & Device Rename
Content Management
Domain Filter & IP Filter
LED Control
Ja
Local Control Method
Config Web Page & App Control
Remote Control Method
Config Page via HTTPS, App Control & TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
Local Update, App (Over the Air) & Online Update
Reliability
Timed Reboot & Backup and Restore
Diagnostic Tools
Diagnosis, Ping, Traceroutem NSLookup & System Log
Languages
English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese & Traditional Chinese
Waarom Cudy?

Jouw netwerk geoptimaliseerd

  • Extreem snel

    WiFi 7

    Met het gloednieuwe WiFi 7 haal je verbindingen tot wel 2,5G. Zo loop je nooit meer tegen "lag" aan.

  • Altijd bereik

    De super snelle Cudy Mesh systemen zorgen voor bereik door heel je huis. Zelfs op de plekjes waar je normaal niet zulk goed bereik hebt.

  • Makkelijk te beheren

    Met de moderne Cudy app voor iPhone en Android beheer jij jouw volledige netwerk met een druk op de knop. Van het snel toevoegen van een Mesh punt tot de controle over wie er op jouw netwerk mag. Alles vanuit een app.
